> >>Quick coupling FM22-M3 / 8G (A)
Quick coupling FM22-M3 / 8G (A) View larger

Quick coupling FM22-M3 / 8G (A)

MTM70107

New product

Quick connection with handwheel M22 Female - 3/8 Male
Brass / nickel-plated iron material

More details

10,00 € tax excl.

More info

Pressure 28 MPa 4060 psi
Nominal flow 40 l / min 10.5 U.S. gal / min
Nominal temperature 160 ° C 320 ° F
Attack G 3/8 M
With piston diameter 14 mm

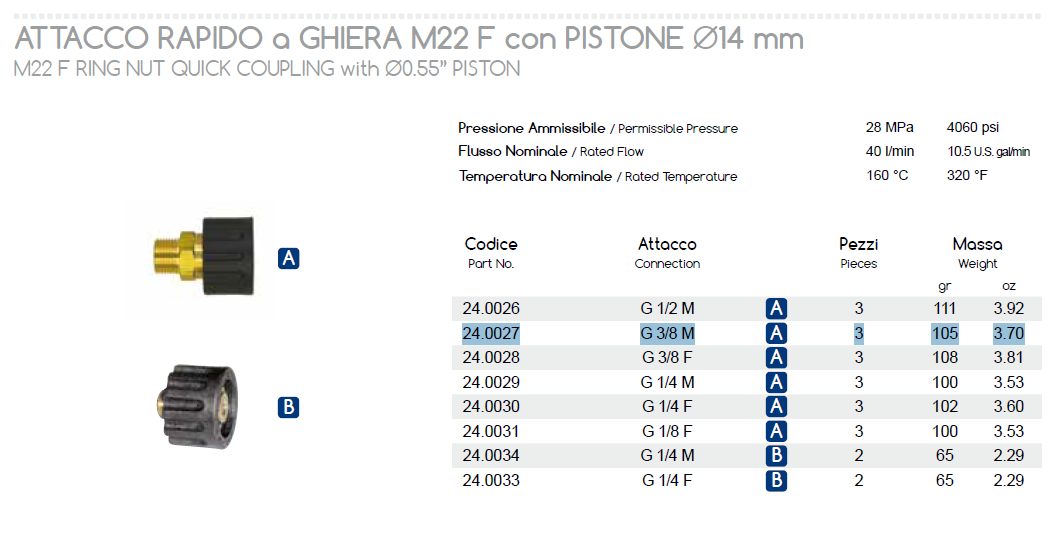

Data sheet

ManufacturerMTM Hydro Kaster Machines

Download

Attacco rapido FM22-M3/8G(A)

Download (83.54k)
