> >>Semi-rigid arm with Z L1550mm 3 / 8M output

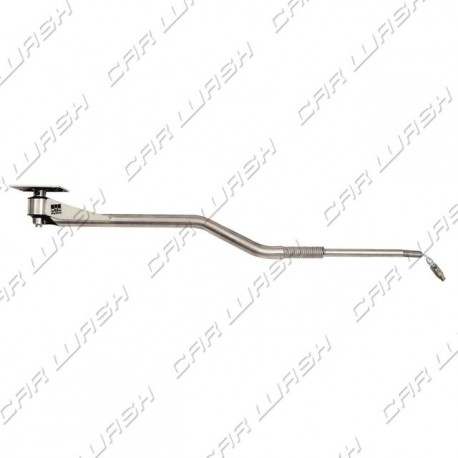

Semi-rigid arm with Z L1550 View larger

Semi-rigid arm with Z L1550mm 3 / 8M output

MTM186120

New product

Semi-rigid Z-shaped revolving arm
Material stainless steel (AISI 304)
Compact R1 rubber hose
Connections: G ¼ F input - G 3/8 M output
Length 1550 - 61 "
Ceiling connection
Weight 13 kg

More details

725,00 € tax excl.

More info

Admissible pressure 21 MPa 3100 psi
Nominal temperature 120 ° C 250 ° F
360 ° rotation angle

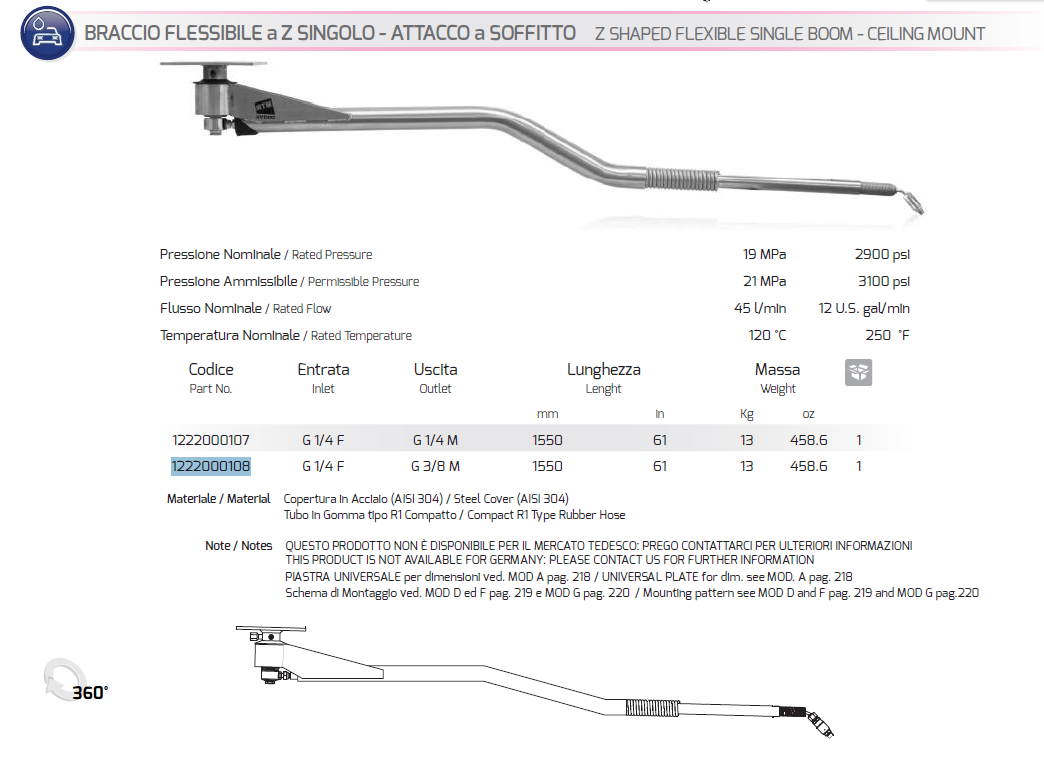

Data sheet

ManufacturerMTM Hydro Kaster Machines

Download

Braccio semirigido a Z L1550

Download (123.12k)

Braccio semirigido a Z L1550_2

Download (539.29k)
