> >>Double L1600 / 1750mm rigid arm 3 / 8M output

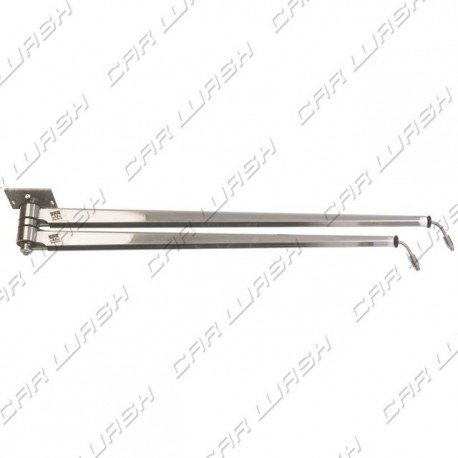

Double rigid arm L1600 / 1750 View larger

Double L1600 / 1750mm rigid arm 3 / 8M output

MTM184020

New product

double swivel arm
Material stainless steel (AISI 304)
Stainless steel tube
Connections: G ¼ F input - G 3/8 M output
Length 1600 - 1750 63 "- 69

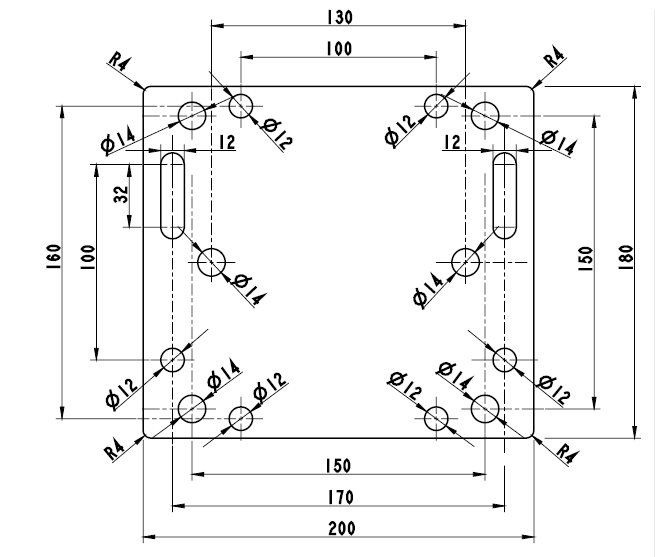

Ceiling connection
Weight 23 kg



More details

1 350,00 € tax excl.

More info

Admissible pressure 21 MPa 3100 psi
Nominal temperature 120 ° C 250 ° F
360 ° rotation angle

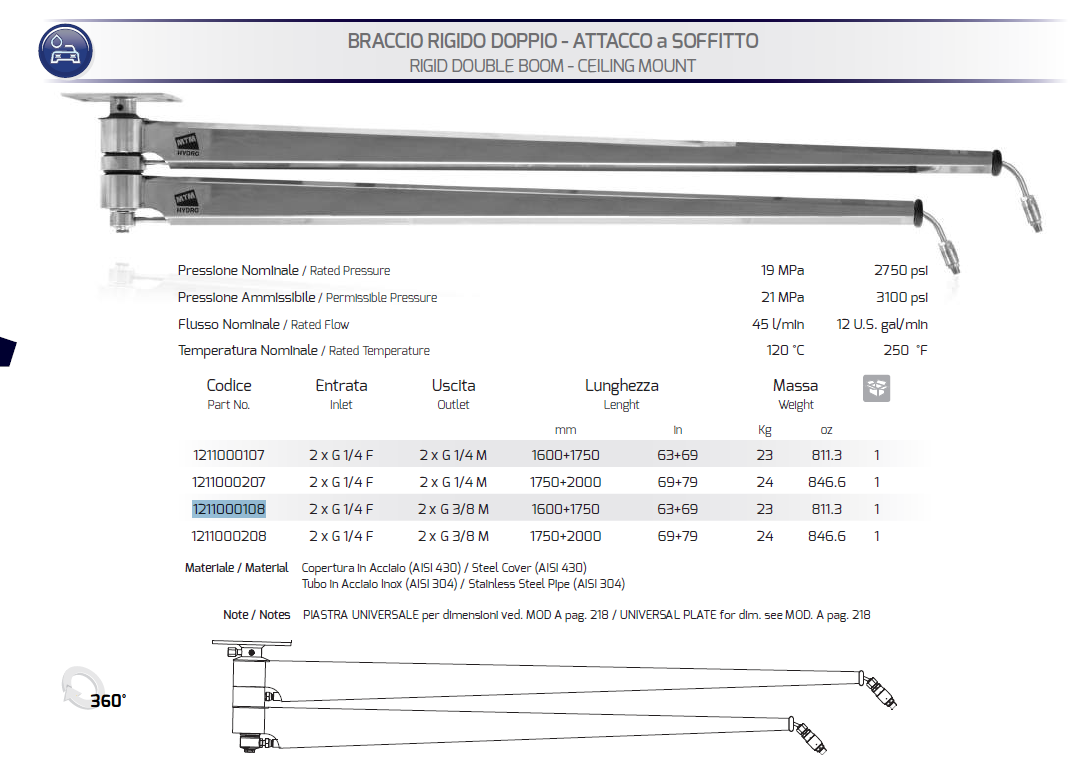

Data sheet

ManufacturerMTM Hydro Kaster Machines

Download

Braccio rigido doppio

Download (154.25k)

Braccio rigido doppio_3

Download (44.3k)

Braccio rigido doppio_2

Download (62.87k)
