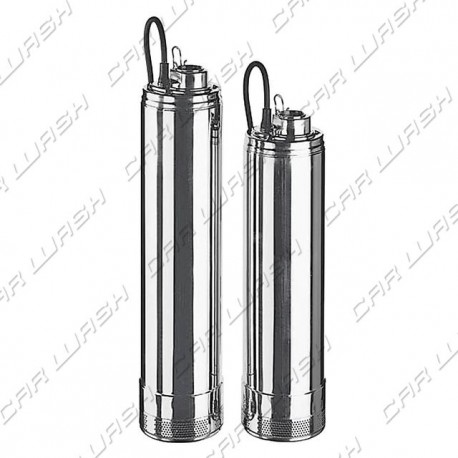

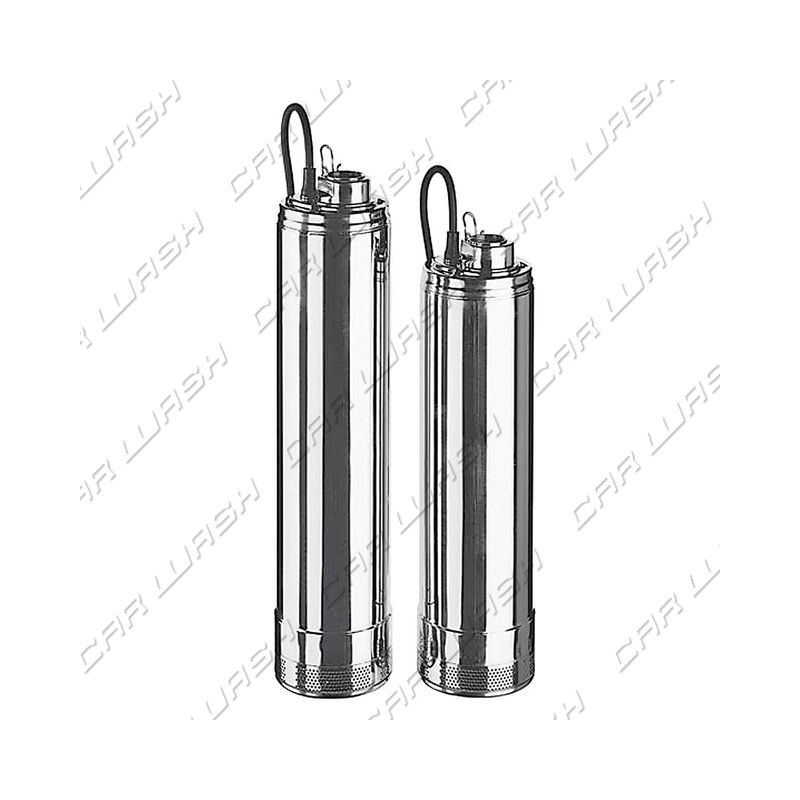

> >Ebara Idrogo 80/12 three-phase submersible electric pump
Ebara submersible electric pump View larger

Ebara Idrogo 80/12 three-phase submersible electric pump

GM IDROGO 8012

New product

5 "submerged centrifugal electric pump
The external jacket, the motor cover, the shaft, the seal holding disc, the filter and the closing ring are in AISI 304. Impeller, diffuser and spacer in PPE + PS reinforced with glass fibers. The upper mechanical seal (motor side) in Carbon / Ceramic / NBR while the lower one (pump side) in SiC / Carbon / NBR.

More details

714,17 € tax excl.

More info

Handling of clear water from wells, tanks and first collection tanks, pressurization of domestic systems, small irrigation, vehicle washing and pressure increases in general

FEATURES:

• Head from 10 to 76 m
• Flow rate 1.2 to 7.2 m3 / h
• Maximum dive 150 m
• Maximum liquid temperature 40 ° C
• Maximum passage of 2.5 mm solids

Data sheet

ManufacturerEbara

Download

Elettropompa sommersa

Download (227.2k)
