> >Flexible Z Shaped Boom 1550 mm
Flexible Z boom View larger

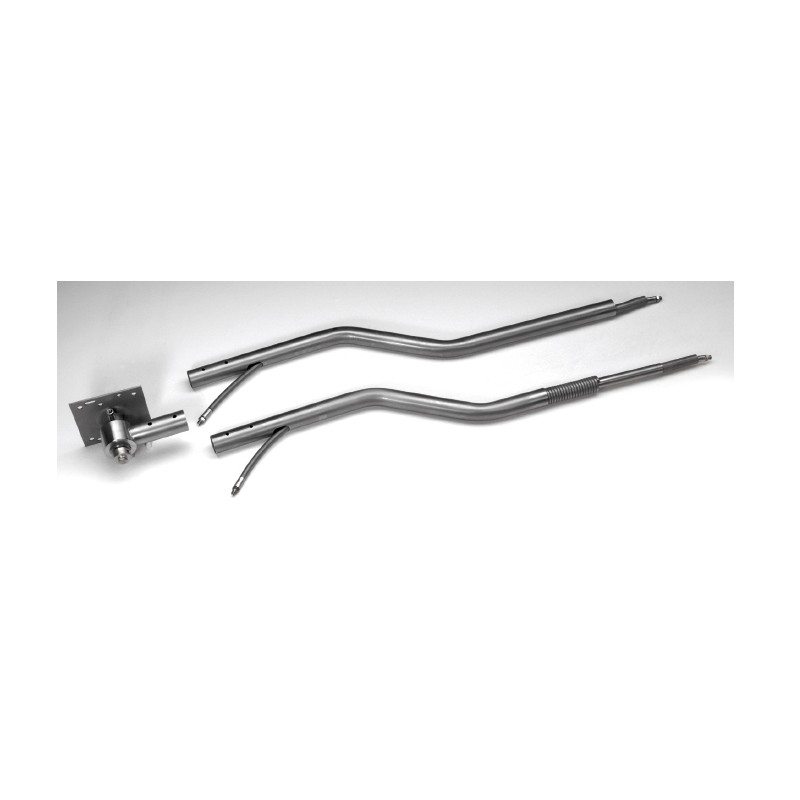

Flexible Z Shaped Boom 1550 mm

MC0156000320

New product

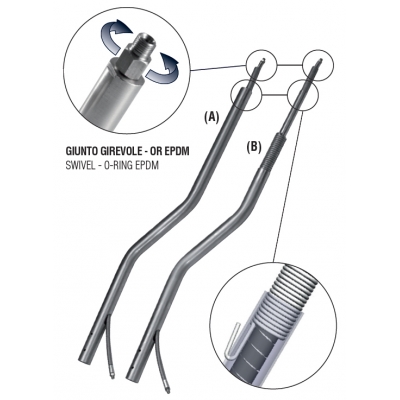

"Z" SHAPED BOOM
New spring coupling system
Item to be combined with the "A" bracket
Flexible pipes with high chemical resistance
Lenght 1550 mm.

More details

385,97 € tax excl.

More info

NOMINAL PRESSURE 220 bar 22 MPa 3200 psi
PERMISSIBLE PRESSURE 250 bar 25 MPa 3625 psi
NOMINAL CAPACITY 45 l / min 12 USGpm
NOMINAL TEMPERATURE 90 ° C 194 ° F

Data sheet

ManufacturerMecLine

Download

Dettaglio

Download (70.45k)

Scheda

Download (72.89k)
