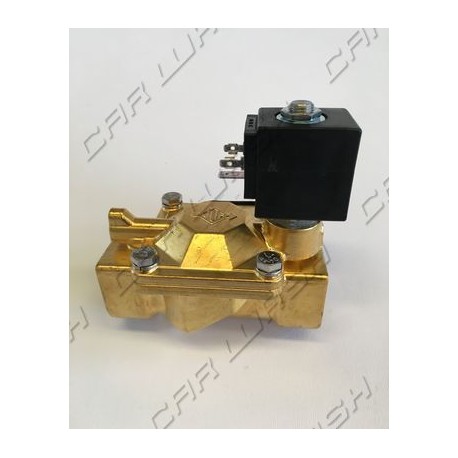

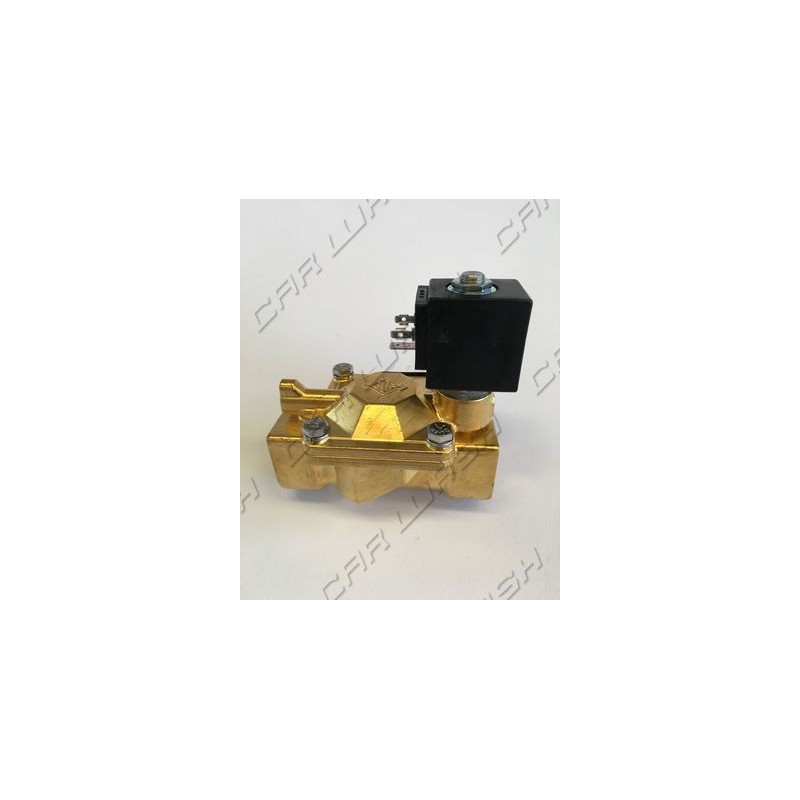

> >ODE7 1 '' NO brass solenoid valve body
ODE7 1 '' NO brass solenoid valve body View larger

ODE7 1 '' NO brass solenoid valve body

ODE71

New product

solenoid valve live action suitable for interception of f lu id i
compatibli with the construction materials.
A minimum operating pressure of 0.2 bar is required.
The materials used and the tests carried out and guaranteed
reliability and durability.

More details

137,49 € tax excl.

More info

Functionality 2 Way Indirect drive, Normally closed, Normally open
Material Brass
Connections G 1
Flow rate Kv (l / min) 35, 60, 70, 120, 140, 150, 190, 400, 520, 750, 1250, 1400

Applications Water, Air, Car Wash, Industrial Automation, Compressors, Combustible Gases, Bottling, Irrigation, Packaging, Thermoregulation, Water Treatment

NSF Certification
Brass body - UNI EN 12165 CW617N
AISI 300 series stainless steel tube
Fixed core AISI 400 series stainless steel
Mobile core AISI 400 series stainless steel
Copper displacement ring - Cu 99.9%
AISI 300 series stainless steel spring
Standard Shutter: B = NBR
On request: E = EPDM V = FKM
Brass Orifice - UNI EN 12165 CW617N

Data sheet

ManufacturerOde

Download

Corpo elettrov. ODE7 1'' NA

Download (103.53k)
