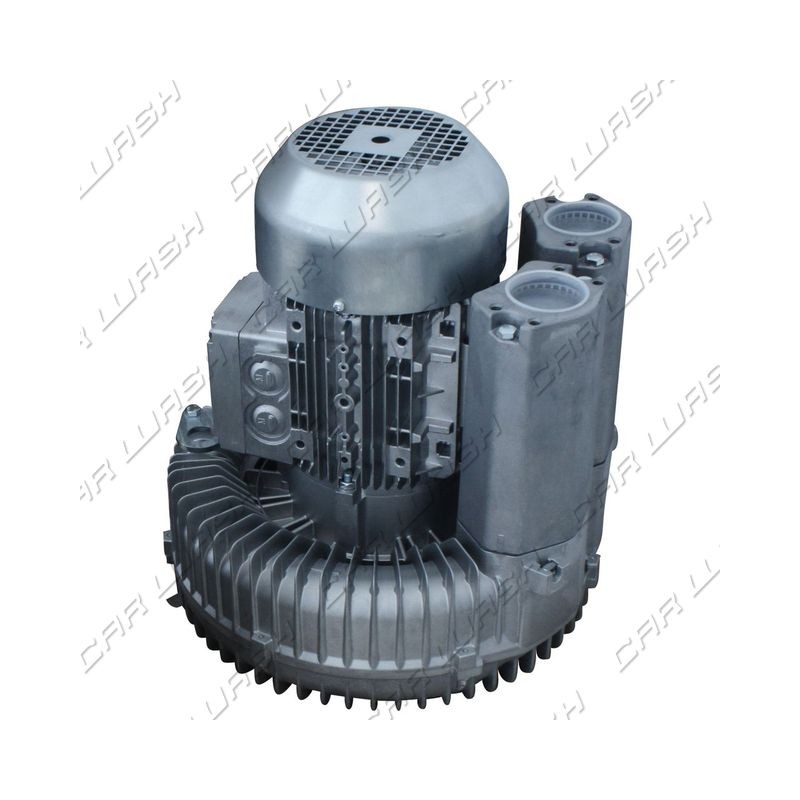

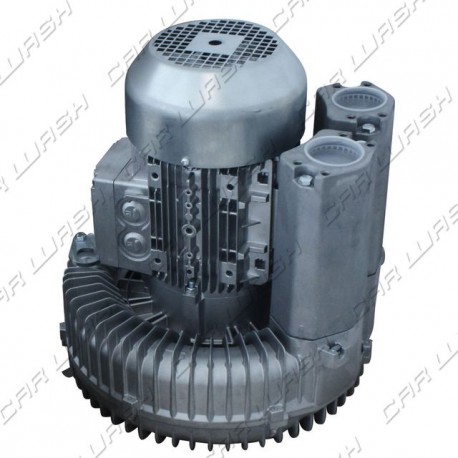

Side channel blower turbine View larger

Side channel blower turbine, 1 stage, kW 3.0 V 230-400 / 3 / 50-60Hz

EC SC601MF3.0T

New product

Built for both compression and suction operation, they are designed to work continuously. Made of die-cast aluminum, they guarantee maximum strength. They do not need lubrication as there is no contact between static and rotating parts and the bearings are self-lubricated for life.

More details

1 090,00 € tax excl.

More info

The blowers can operate both in a horizontal position and in a vertical position both in compression and in suction.

Principle of operation

The gas is sucked into the chamber by the loading opening 1 When the gas enters the side channel 2 the movement of the impeller 3 transmits a certain speed to the gas in the direction of rotation. The centrifugal force of the impeller blades accelerates the gas towards the outside and the pressure increases. Each rotation increases the kinetic energy, with a further increase in pressure in the side channel. The channel narrows towards the rotor, dragging the gas away from the impeller blades to discharge it through the exhaust silencer 4 and then out of the pump.

  • Suction characteristics (50 hz)
  • 3.0 Kw absorption
  • Capacity: 320 (m3 / h)
  • Pressure: 300 (mbar rel.)
  • Compression characteristics (50hz)
  • 3.0 Kw absorption
  • Capacity: 320 (m3 / h)
  • Pressure: 325 (mbar rel.)
