> >>Double L1750 / 2000mm rigid arm 3 / 8M output
Double L1750 / 2000mm rigid arm View larger

Double L1750 / 2000mm rigid arm 3 / 8M output

MTM184030

New product

Double rigid rotating arm
Material stainless steel (AISI 304)
Stainless steel tube
Connections: G ¼ F input - G 3/8 M output
Length 1750 - 2000 69 "- 79"
Ceiling connection
Weight 24 kg

More details

1 222,00 € tax excl.

More info

Admissible pressure 21 MPa 3100 psi
Nominal temperature 120 ° C 250 ° F
360 ° rotation angle

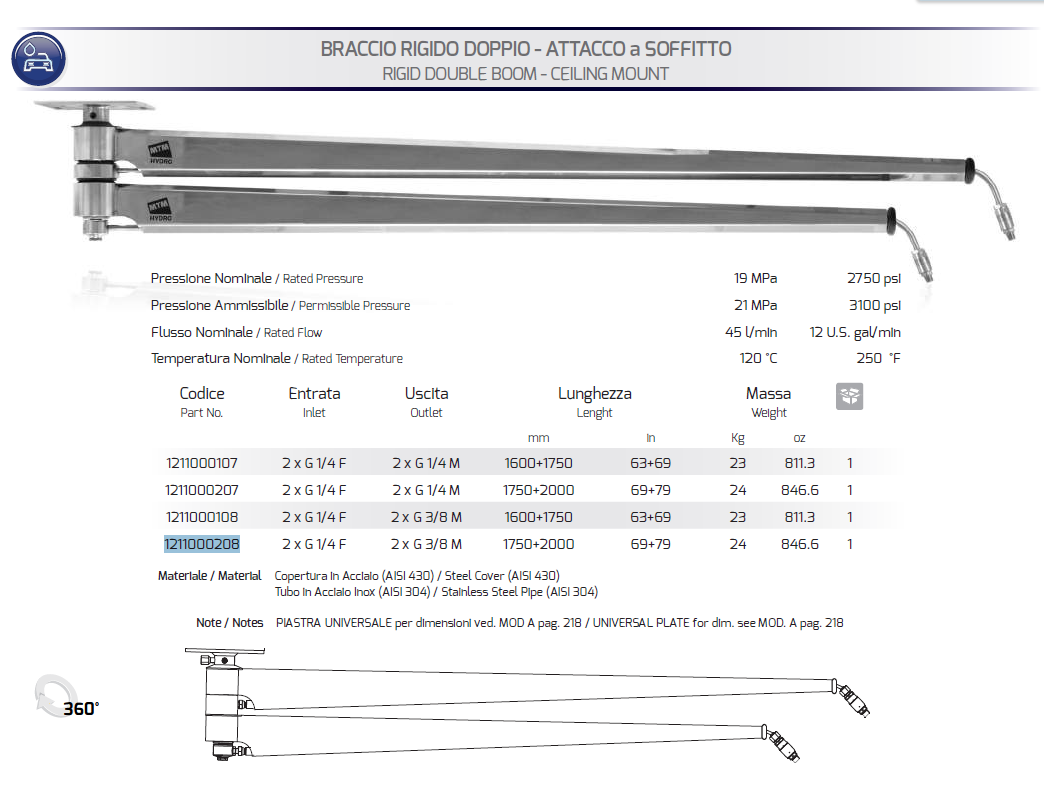

Data sheet

ManufacturerMTM Hydro Kaster Machines

Download

Br. rig. doppio L1750/2000

Download (153.78k)

Br. rig. doppio L1750/2000_2

Download (62.87k)

Br. rig. doppio L1750/2000_3

Download (44.3k)
