> >>Kit130 high - low pressure seal for 1 piston
Kit130 high and low pressure seal   View larger

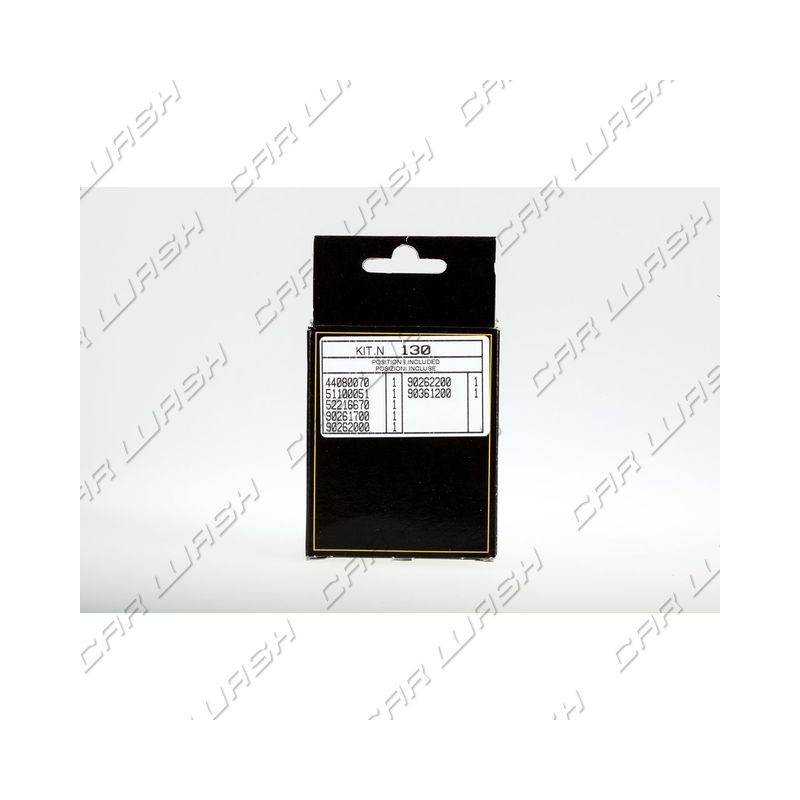

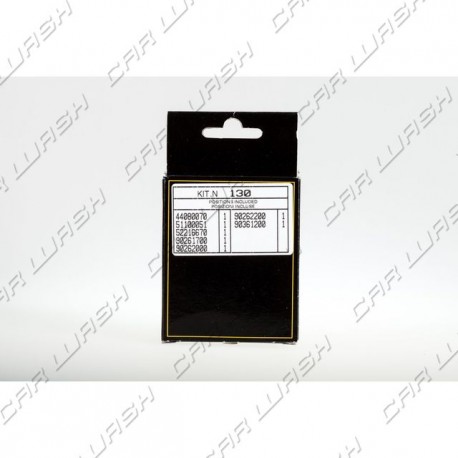

Kit130 high - low pressure seal for 1 piston

IGKIT130

New product

Repair kit for InterPump Group pumps
Kit No. 130 (for 1 piston)

More details

39,69 € tax excl.

More info

Bottom ring diameter 15 mm
Intermediate ring diameter 15 mm
RESTOP ring diameter 15
Ring held 15 mm diameter
Head ring diameter 15 mm
Low pressure seal ring, diameter 15 mm
OR diameter 31.47x1.78 mm

Data sheet

ManufacturerInterpump Group

Download

Kit130 tenuta alta/bassa prs.

Download (612.78k)

Kit130 tenuta alta/bassa prs. 1

Download (290.12k)

Kit130 tenuta alta/bassa prs. 2

Download (193.9k)
