> >>Kit 205 high pressure low pressure for HT complete
Kit 205 high pressure low pressure View larger

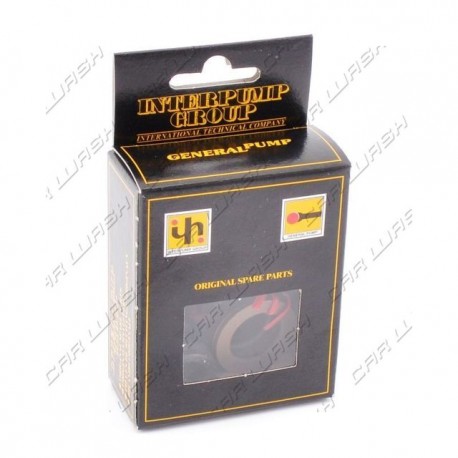

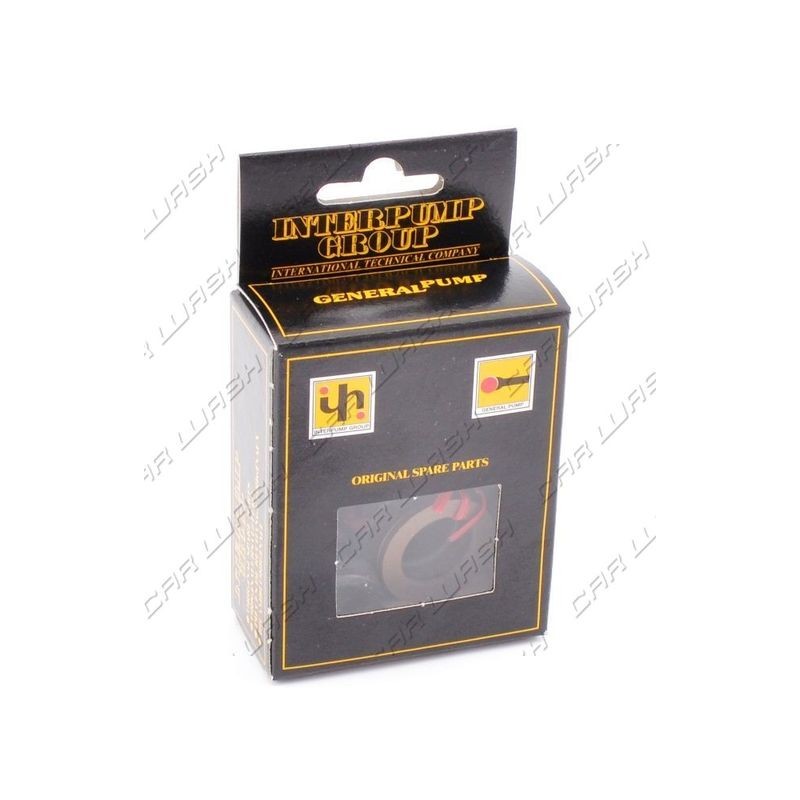

Kit 205 high pressure low pressure for HT complete

IGKIT205

New product

Repair kit for InterPump Group pumps
Kit N° 205 (for 1 piston)

More details

126,33 € tax excl.

More info

Bottom ring 18 mm diameter
Low pressure seal ring diameter 18x22.5
High pressure seal ring diameter 18x22x10
Intermediate ring 18 mm diameter
OR diameter 28.3x1.78 mm

Data sheet

ManufacturerInterpump Group

Download

Kit 205 tenuta alta bassa Ps.

Download (179.92k)

Kit205 tenuta alta bassa (1)

Download (146.85k)
