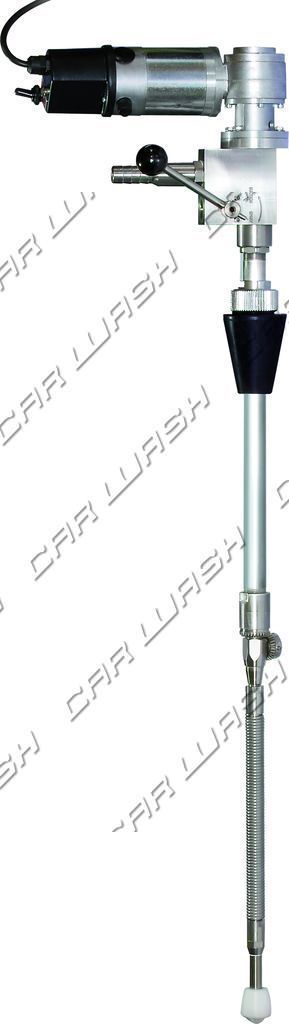

ROTOSH Wash Basin Head
NOMINAL PRESSURE 120 bar 12 MPa 1740 psi
ELIGIBLE PRESSURE 140 bar 14 MPa 2030 psi
NOMINAL RATE 25 l / min 6.6 USGpm
NOMINAL TEMPERATURE 80 ° C 176 ° F
Share on social :
12 V DC ELECTRIC GEARMOTOR
POWER SUPPLY 230 (50HZ) – 115 (60Hz) V
POWER SUPPLY IP 55
CABLE LENGTH WITH SEALING CONNECTIONS 10 m
ROTATION OF DOOR NOZZLE NOZZLES 52 rpm
MINIMUM DIAMETER HOLE OF PASSAGE 40 mm
Mounted NOZZLES, n ° 2 + 1 pc. for pumps from 10 to 15 l / min – (2.7 ÷ 4 USGpm)
disassembled, n ° 2 + 1 pc. for pumps from 15 to 20 l / min – (4 ÷ 5.3 USGpm)
disassembled, n ° 2 + 1 pc. for pumps from 20 to 25 l / min – (5.3 to 6.7 USGpm)
| Weight | 30 kg |
|---|---|
